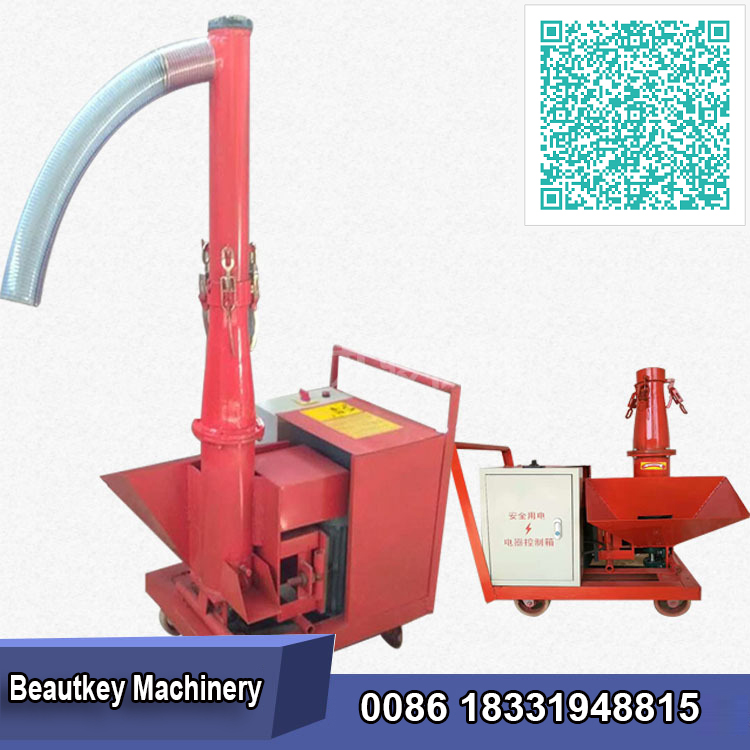

Fecture of vertical type secondary construction column pump,concrete pump

1.secondary structrual column pump maintenance and operation are very simple.

2.The pump maintenance and repair costs low, save money.

3.It's very easy to move, one person can move.

4.secondary structrual column pump power is 5.5KW, wiring is very convenient, all floors can be wired.

5.The pump model is 60 cm * 80 cm, any narrow place can enter.

6.It uses modular design, separate and easy to assemble.

7.secondary structure column pump delivery height of 1-5 meters, can be adjusted freely.

Operation of vertical type secondary construction column pump,concrete pump

The operation method of secondary structrual column pump

1. Turn on the power, the equipment appearance to do ground protection, start the motor.

2 into the hopper, according to the construction of the height and angle into a meter or 0.5 meters grain cage, the angle between the upper and lower blade alignment according to the screw angle, and then install the gray mouth, the last lock buckle.

3. Pipe in the cage. (The height of the grain cage from the top is higher than the height of the pillar or beam to be poured.) Push to the construction site and extend the outlet hose into the pillar into the ash hole.

4. When you start using, you should wet the pipe with dilute ash, the pipe ash export, and then hopper, ash pipe and other clean.

Technical parameter of vertical type secondary construction column pump,concrete pump

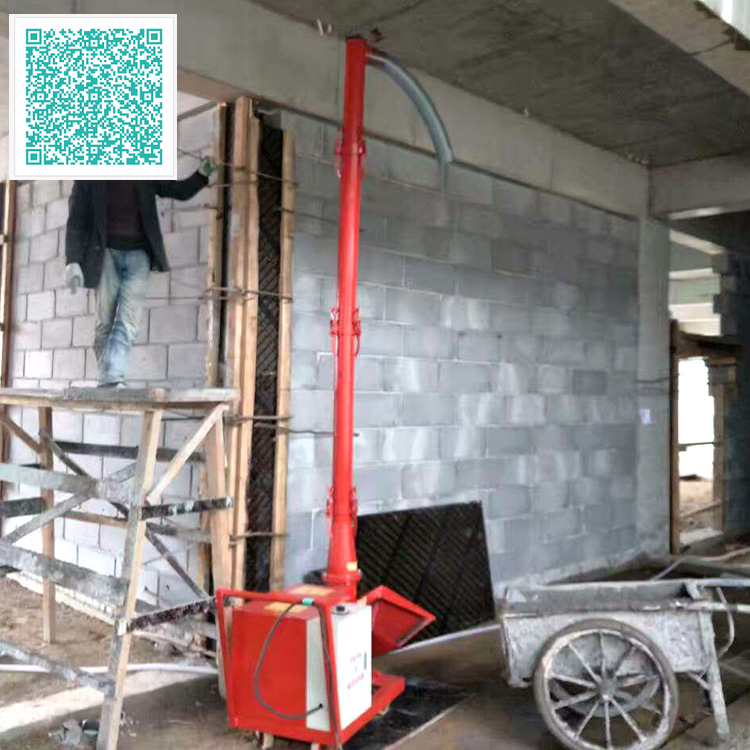

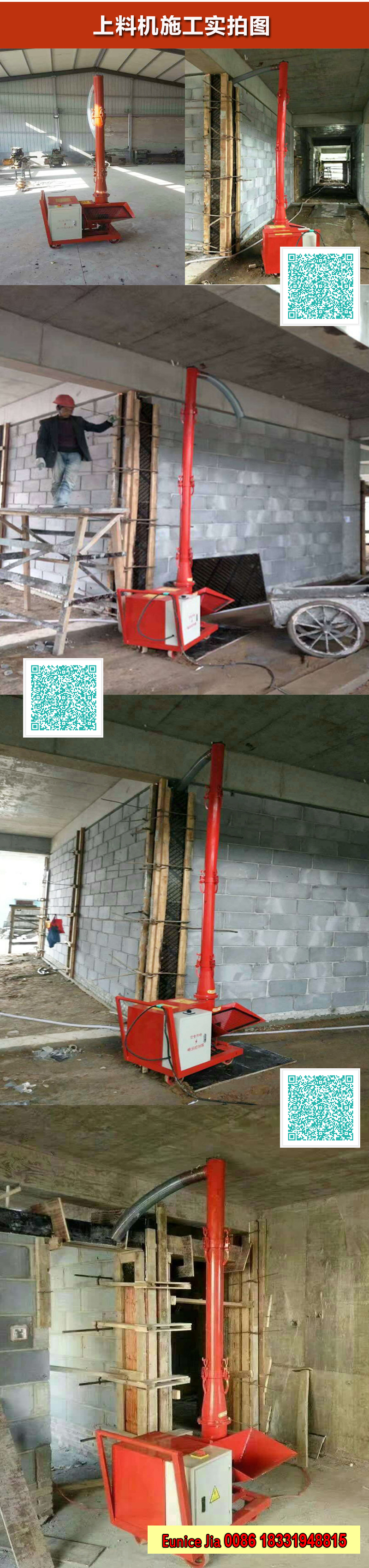

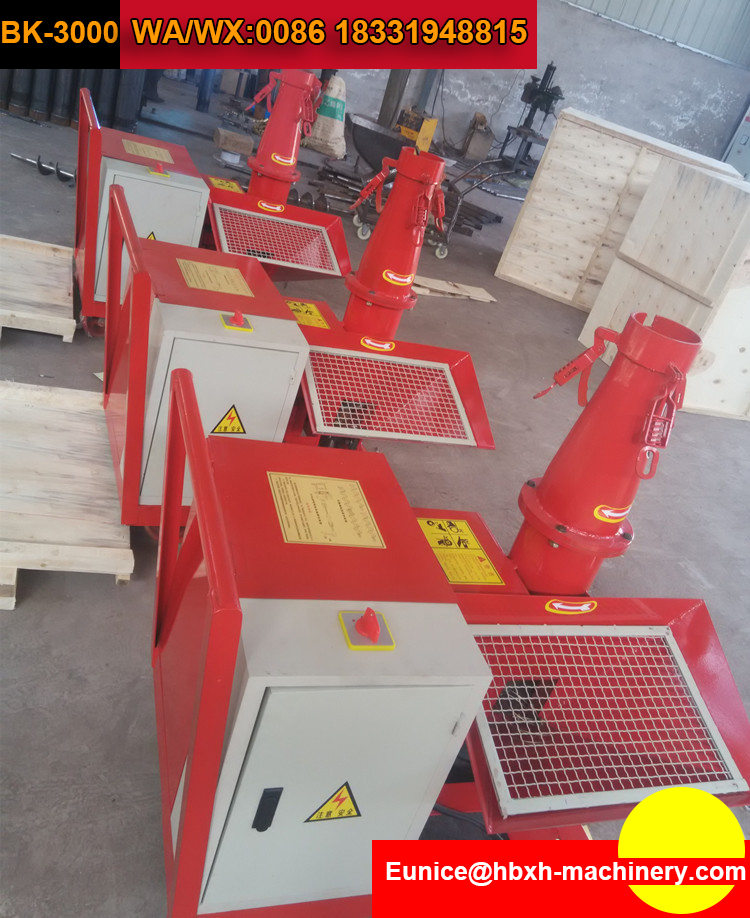

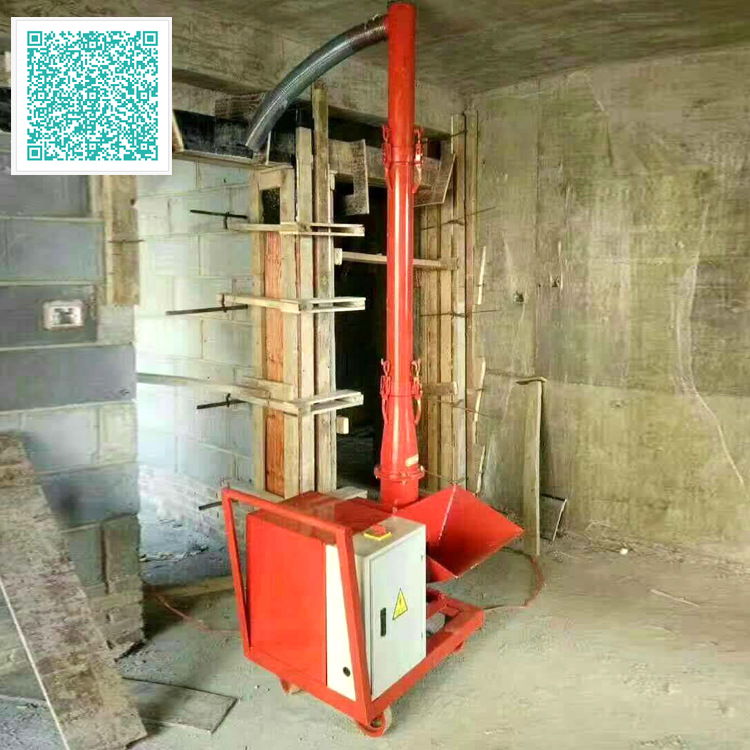

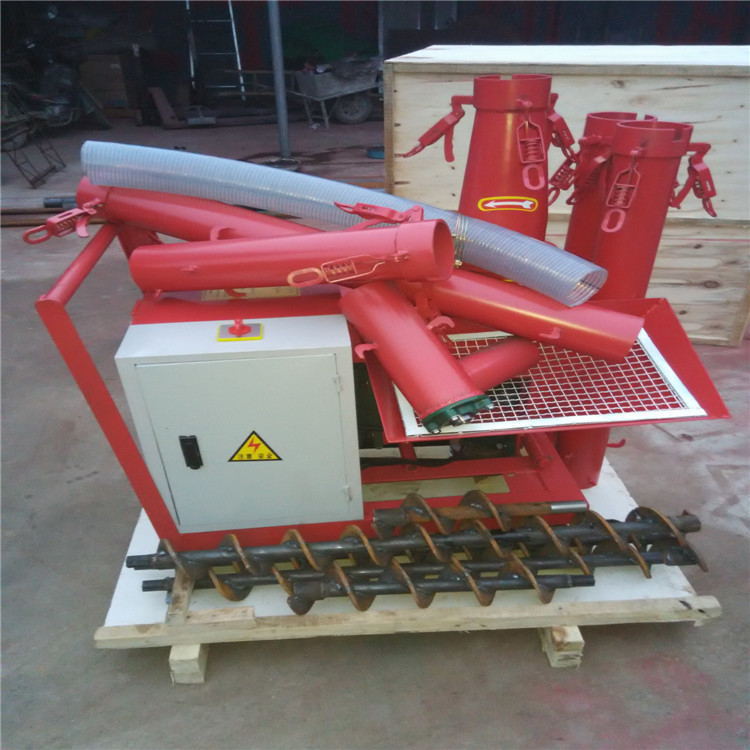

Photos of vertical type secondary construction column pump,concrete pump

Contact detail of vertical type secondary construction column pump,concrete pump
