Capacity | 3m3/hr |
Spraying speed | 200m2/hr |
Working pressure | 3MPa |
Horizontal conveying distance | 60m |
Vertical conveying distance | 30m |
Main motor power | 7.5kw+3kw,380v |
Screw speed | 200--600RPM |
Hose size | 13mm |
Aggregate size | 7mm |
Internal diameter of pipe | 25/32mm |
Air compressor(optional) | displacement400L/min,8bar,3kW |
Hopper capacity | 100L |
Filling height | 20m |
Dimension（LxWxH） | 1850*650*1200mm |
Weight | 380kg |
Features:

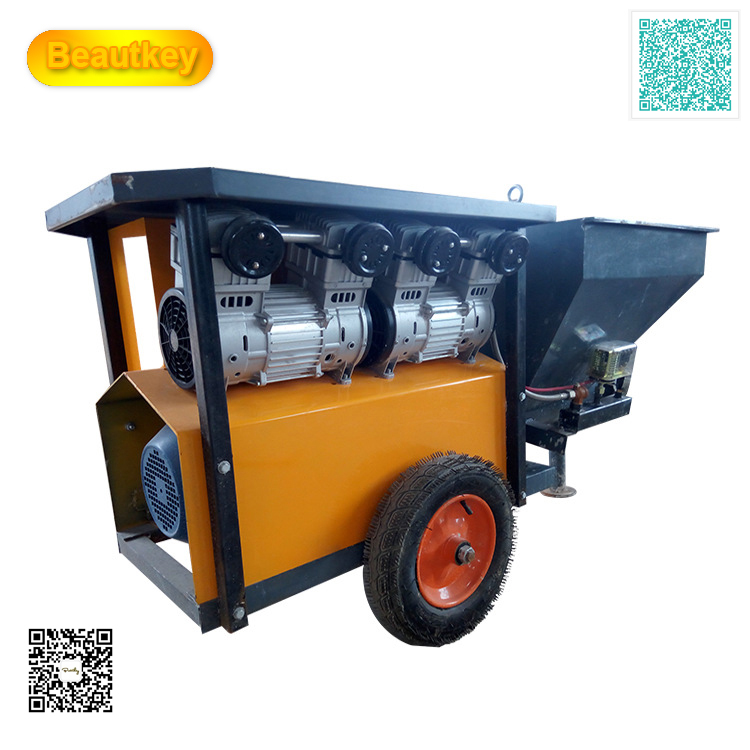

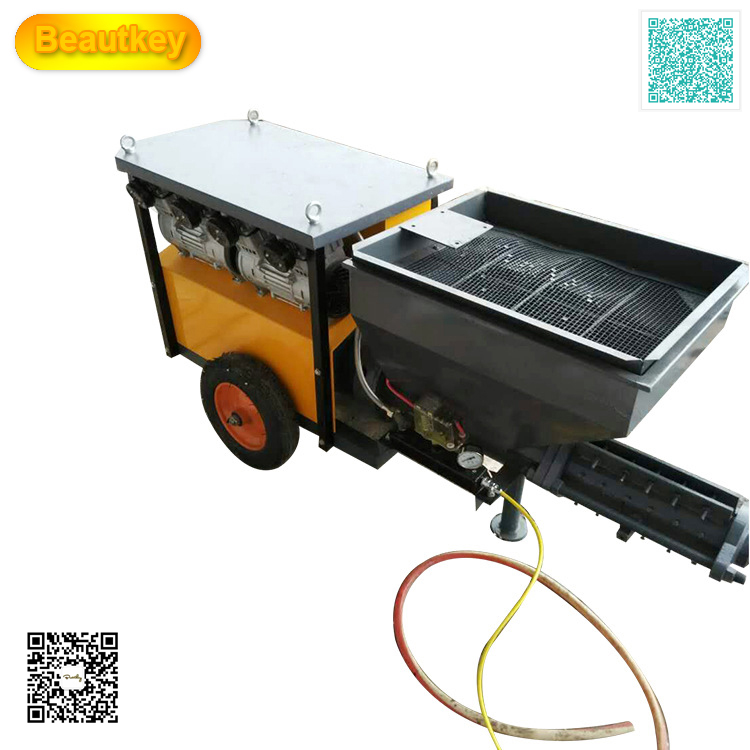

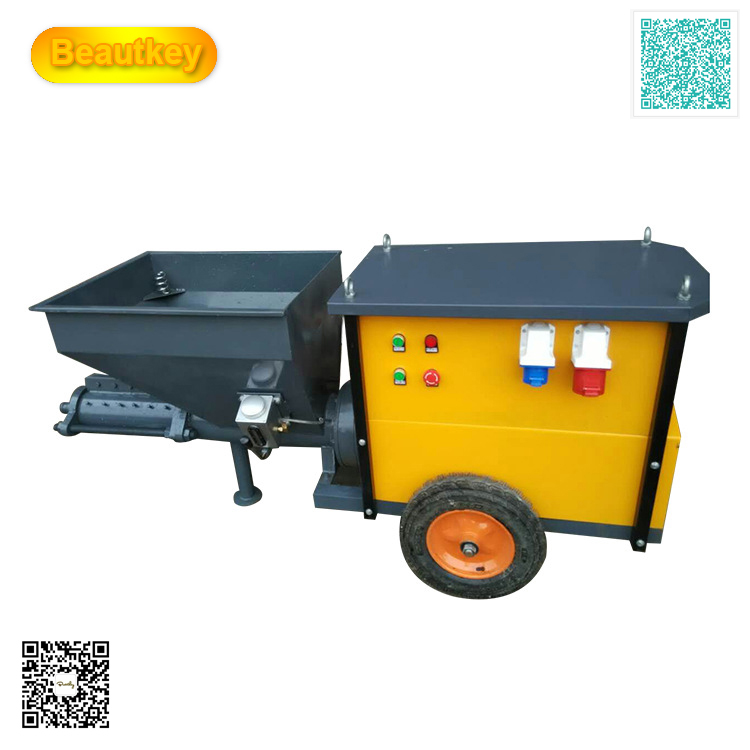

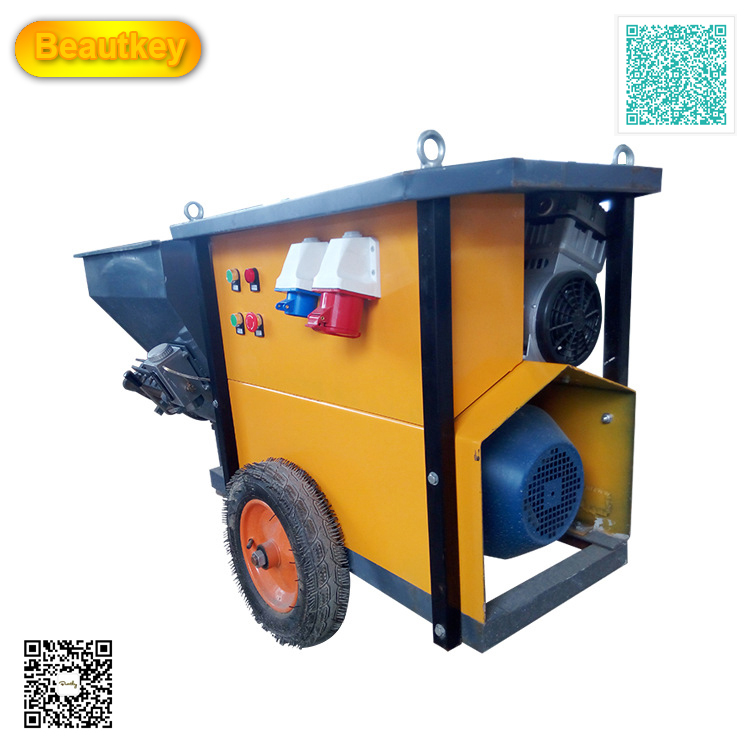

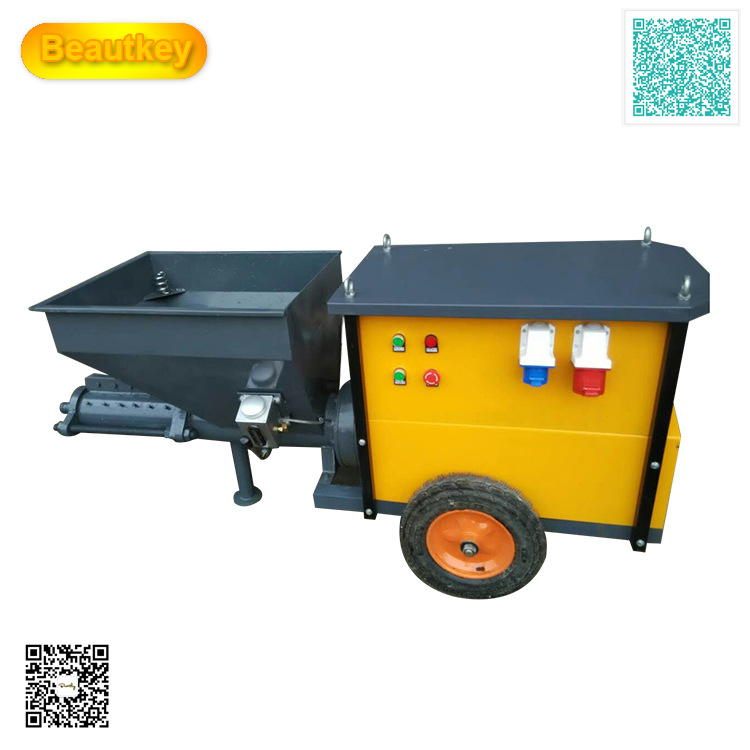

1. The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator.
2. Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
3. The rotor / stator pump ensures the material is pumped and sprayed out continuously and evenly.
4. The machine always works with efficiency and silence.
5. With air value remote-control function.
6. The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.
