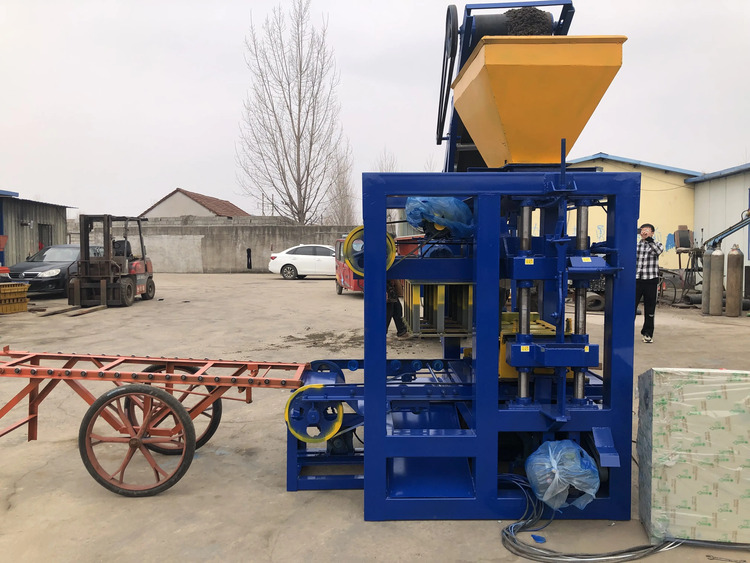

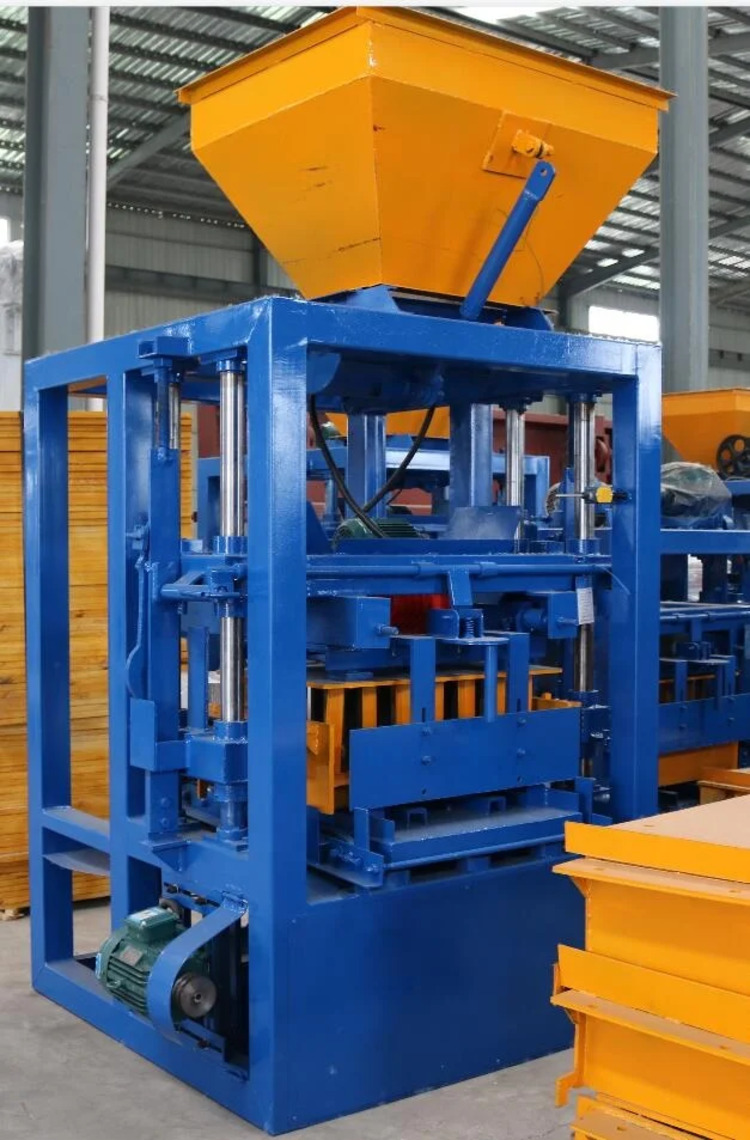

TB4-24 Concrete Block Moulding Machine

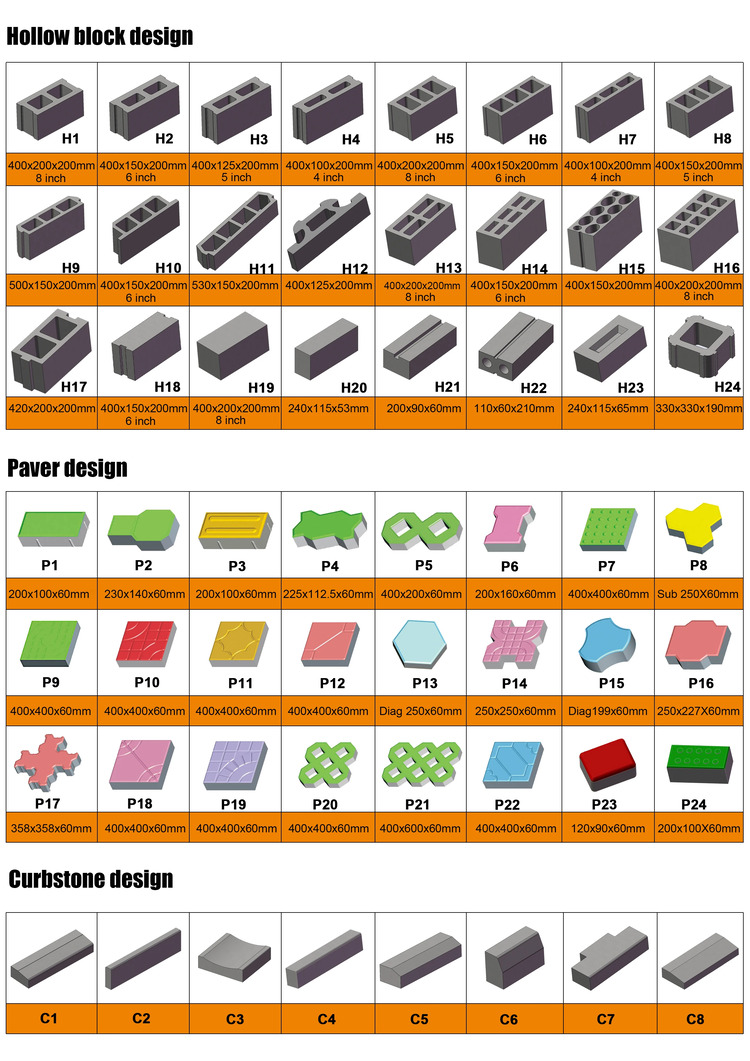

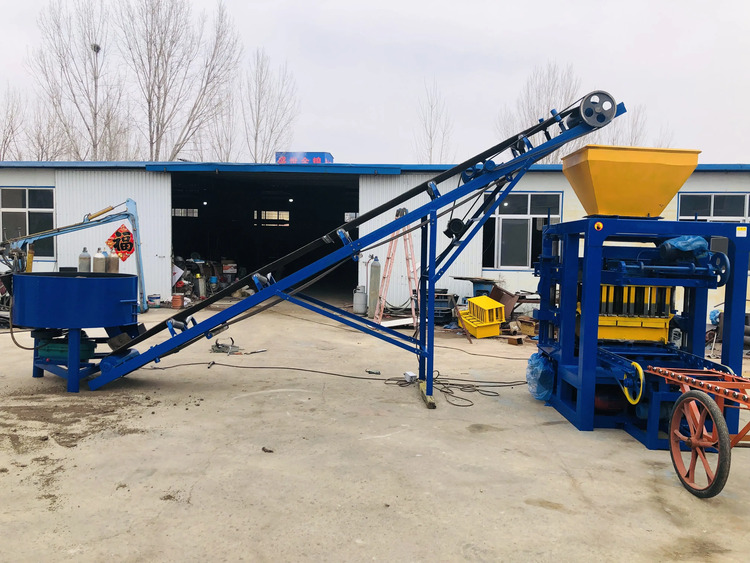

Its a Simple electric Block Machine Production Line with Mixer, Belt conveyor ,Host Block Forming Machine and Stacker machine, Its easy to operate and compact to use,The machine can produce various hollow bricks, solid bricks and pavers by changing the molds. The following bricks are some common brick types. At the same time, we can customize the brick molds for you according to your specific requirements.

The main advantage of TB4-24 semi auto block making machine.

1.TB4-24 block machine is one of our newly designed block making machine with less power

2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With simple operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.

3.It uses Mode 350 speed reducer to raise and lower the mold, so it greatly increases the usage life of the speed reducer.

4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.
